Options:

• Q1X Blast Coupling, 3/4″ Hose ID x 1-1/2″ Hose OD (1-3/4″ Gasket ID)
• Q2X Blast Coupling, 1" Hose ID x 1-7/8" Hose OD (1-3/4" Gasket ID)
• Q3X Blast Coupling, 1-1/4″ Hose ID x 2-5/32″ Hose OD (1-3/4″ Gasket ID)
• Q4X Blast Coupling, 1-1/2″ Hose ID x 2-3/8″ Hose OD (1-3/4″ Gasket ID)
• Q6X Blast Coupling, 2″ Hose ID x 2-7/8″ Hose OD (1-3/4″ Gasket ID)

Options:

• Q05 Blast Coupling, 1/2" Hose ID x 1-3/16" Hose OD (1-1/4" Gasket ID)
• Q1 Blast Coupling, 3/4″ Hose ID x 1-1/2″ Hose OD (1-1/4″ Gasket ID)
• Q2 Blast Coupling, 1" Hose ID x 1-7/8" Hose OD (1-1/4" Gasket ID)
• Q3 Blast Coupling, 1-1/4″ Hose ID x 2-5/32″ Hose OD (1-1/4″ Gasket ID)
• Q4 Blast Coupling, 1-1/2″ Hose ID x 2-3/8″ Hose OD (1-1/4″ Gasket ID)

Options:

• MHE1 Nozzle Holder, 3/4″ Hose ID x 1-1/2″ Hose OD (50mm Threads)
• MHE2 Nozzle Holder, 1″ Hose ID x 1-7/8″ Hose OD (50mm Threads)
• MHE3 Nozzle Holder, 1-1/4″ Hose ID x 2-5/32″ Hose OD (50mm Threads)
• MHE4 Nozzle Holder, 1-1/2″ Hose ID x 2-3/8″ Hose OD (50mm Threads)

Options:

• HE05 Nozzle Holder, 1/2" Hose ID x 1-3/16" Hose OD (3/4" NPS)
• HE1 Nozzle Holder, 3/4″ Hose ID x 1-1/2″ Hose OD (1-1/4″ NPS)
• HE2 Nozzle Holder, 1″ Hose ID x 1-7/8″ Hose OD (1-1/4″ NPS)
• HE3 Nozzle Holder, 1-1/4″ Hose ID x 2-5/32″ Hose OD (1-1/4″ NPS)
• HE4 Nozzle Holder, 1-1/2″ Hose ID x 2-3/8″ Hose OD (1-1/4″ NPS)

Recommended for surface preparation and anti skid applications.

Mesh Size: #100 - Available in sizes 16-240 mesh

Packaging: 40 x 50lb Bags, 3,080lb Bulk Bag

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.

Recommended for surface preparation and anti skid applications.

Mesh Size: #120 - Available in sizes 16-240 mesh

Packaging: 40 x 50lb Bags, 3,080lb Bulk Bag

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.

Recommended for surface preparation and anti skid applications.

Mesh Size: #80 - Available in sizes 16-240 mesh

Packaging: 40 x 50lb Bags, 3,080lb Bulk Bag

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.

Used to connect the blast pot to the blast hose.

Options:

• SB3X Threaded Coupling, 1-1/2" NPT (1-3/4" Gasket ID)
• SB4X Threaded Coupling, 2" NPT (1-3/4" Gasket ID)

Used to connect the blast pot to the blast hose.

Options:

• SB1 Threaded Coupling, 1-1/4″ NPT (1-1/4″ Gasket ID)
• SB2 Threaded Coupling, 1-1/2″ NPT (1-1/4″ Gasket ID)

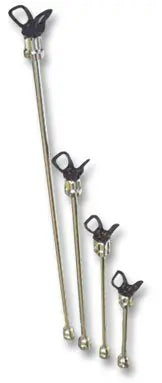

Tip extensions give you extra reach for spraying soffits, high ceilings, and reduce back fatigue when spraying floors and decks. Moving the spray head away from you also keeps you and your equipment cleaner. Includes T93R Tip guard.
4200 PSI (290 BAR)

Options: 6", 10", 15", 20", 30", 39"

Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user-friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine-tune air, abrasive, and water flows to achieve optimal blasting performance, all while maintaining efficient use of abrasive and water. Switch between wet or dry blast, blowoff, and Softwash™ without having to reset your air, abrasive, or water, using a central, easy-to-use gauge console.

Features & Benefits:

• Operate up to three nozzles/outlets simultaneously
• Independently set each nozzle for wet blast, dry blast, softwash or blowoff
• Greater abrasive capacity for increased productivity
• The HALOK® system mechanically requires the operator to follow proper procedure in order to open the 10" closure
• The CEN™ blowdown system reduces blowdown noise levels to approximately 92 dba (equivalent to traffic noise) and prevents frost buildup, which has been reported to retain dangerous pressure in the vessel
• The Ergo-Ladder is a curved ladder with non-slip rungs, grab handle, and attachment point for fall protection systems. It makes for easier, safer and more comfortable access to the 10" closure
• The Manway Stay Bracket automatically retains the manway cover for easier, error-free installation

*Optional Trailer Mount Available*

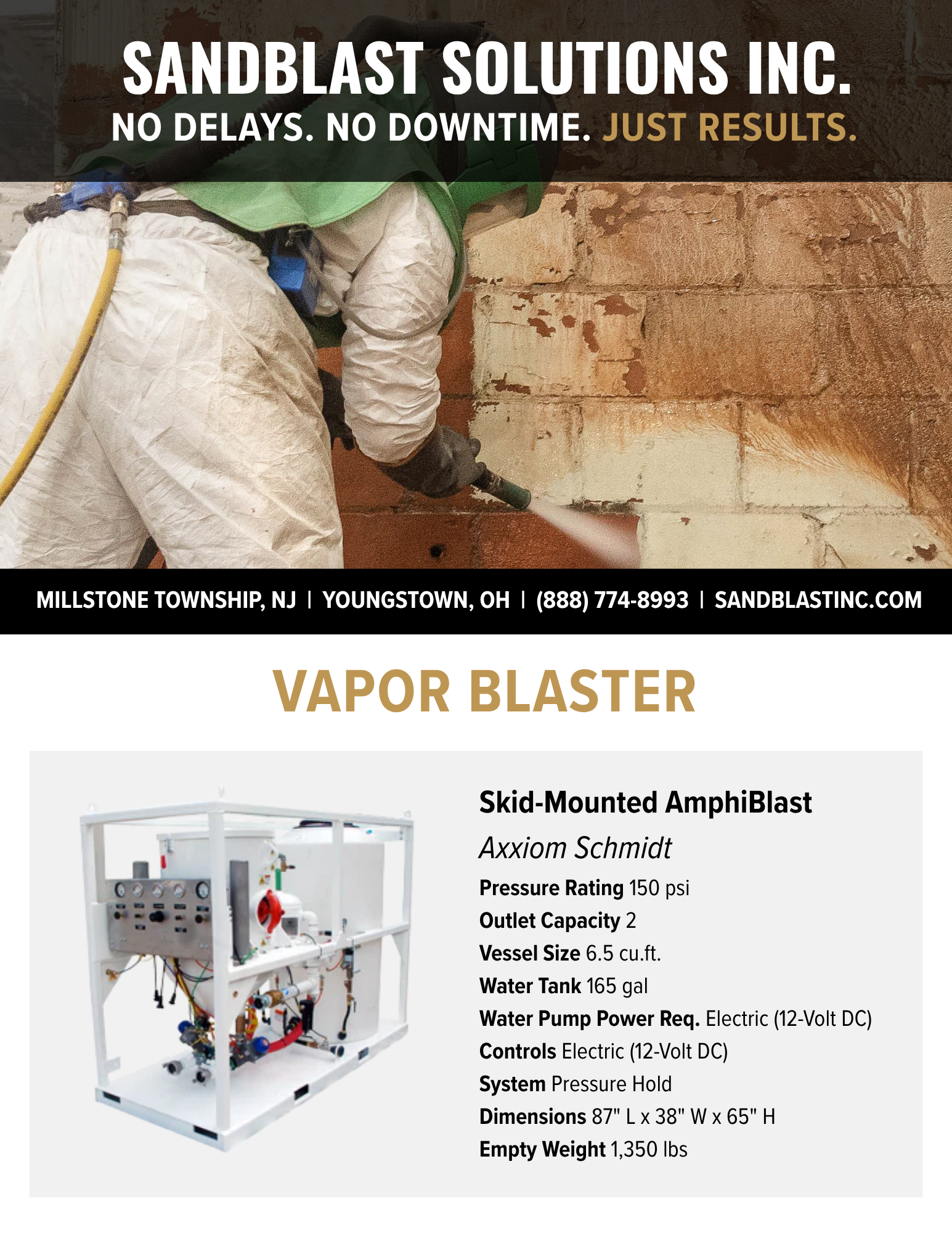

Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user-friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine-tune air, abrasive, and water flows to achieve optimal blasting performance, all while maintaining efficient use of abrasive and water. Switch between wet or dry blast, blowoff, and Softwash™ without having to reset your air, abrasive, or water, using a central, easy-to-use gauge console.

System Options: Pressure Hold

Control Options: Electric

Vessel Size: 6.5 cu.ft

Water Tank: 165 Gallon

Rentals Include (Per Outlet):

• 1-1/4" x 50' 4-Ply Blast Hose Coupled
• 1-1/4" x 15' 2-Ply Whip Coupled
• Electric Deadman and Cord
• Nozzle

Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user-friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine-tune air, abrasive, and water flows to achieve optimal blasting performance, all while maintaining efficient use of abrasive and water. Switch between wet or dry blast, blowoff, and Softwash™ without having to reset your air, abrasive, or water, using a central, easy-to-use gauge console.

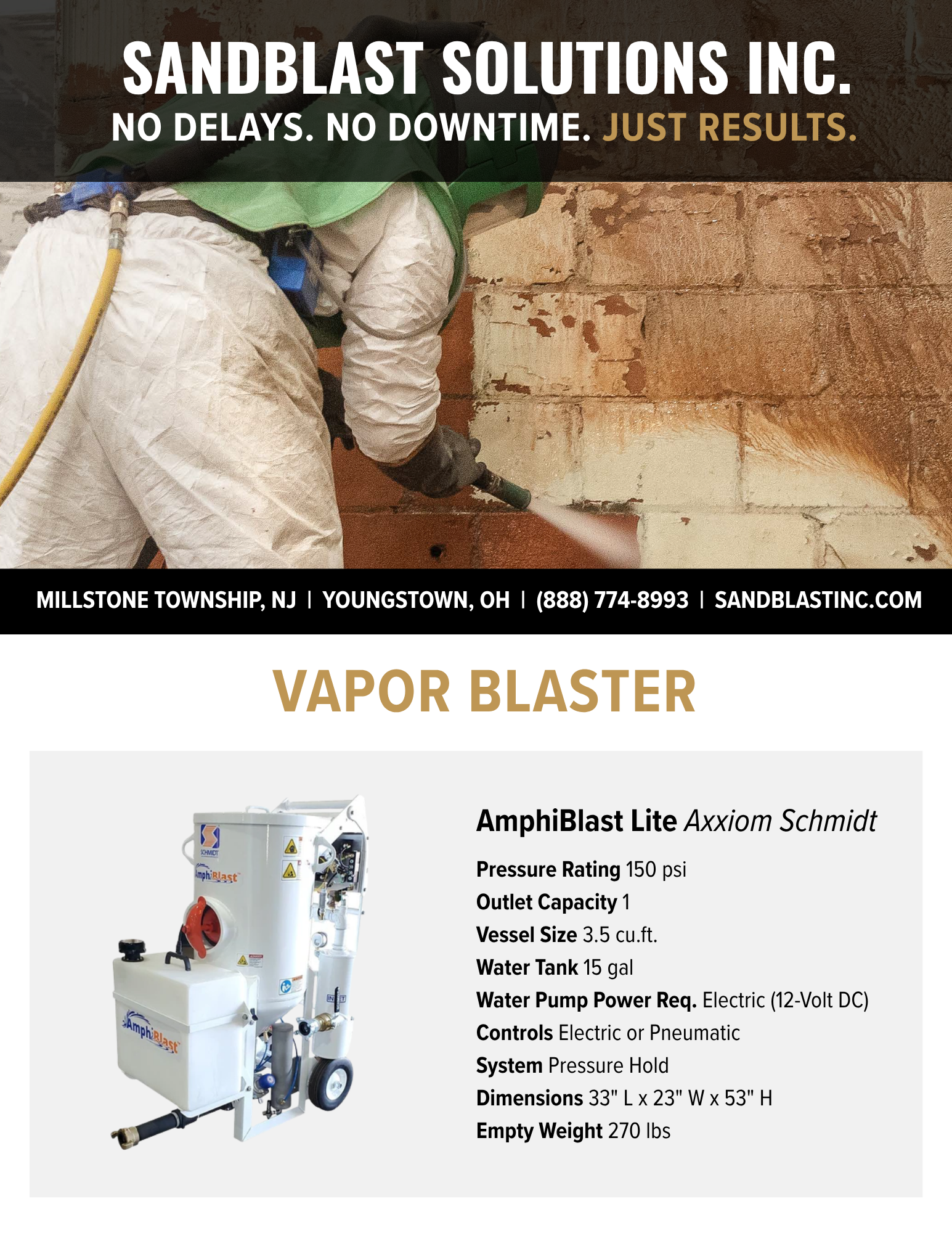

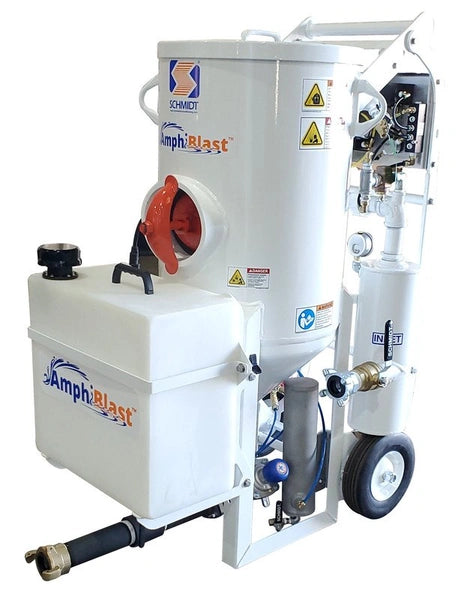

The operation of the AmphiBlast™ Lite is simple. Set the desired blast pressure using the blast pressure control regulator. Choose to blast dry or wet by pushing or pulling a button on the control panel. During wet abrasive blasting, simply dial the water pressure regulator to the desired flow rate represented by the water over air differential pressure gauge reading.

System Options: Pressure Hold

Control Options: Electric, Pneumatic

Vessel Size: 3.5 cu.ft

Water Tank: 15 Gallon

Rentals Include *Hose Size Depends on Air Supply*:

• 3/4" or 1-1/4" x 50' 4-Ply Blast Hose Coupled
• 1-1/4" x 15' 2-Ply Whip Coupled
• Electric Deadman and Cord, Pneumatic Deadman and Twinline
• Nozzle

The operation of the AmphiBlast™ Lite is simple. Set the desired blast pressure using the blast pressure control regulator. Choose to blast dry or wet by pushing or pulling a button on the control panel. During wet abrasive blasting, simply dial the water pressure regulator to the desired flow rate represented by the water over air differential pressure gauge reading.

The AmphiBlast Lite comes in two options, standard with an onboard water tank and without.

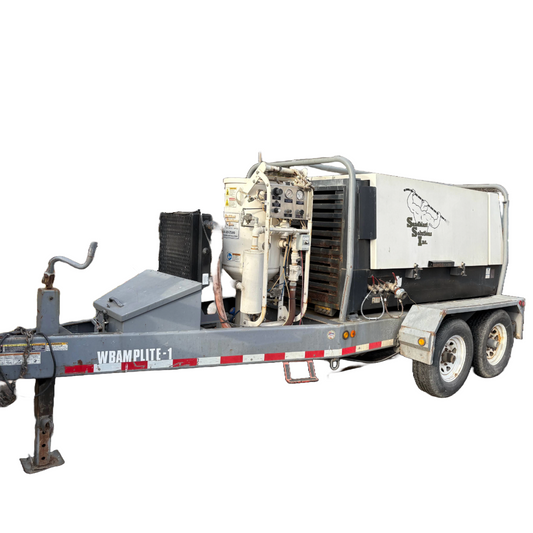

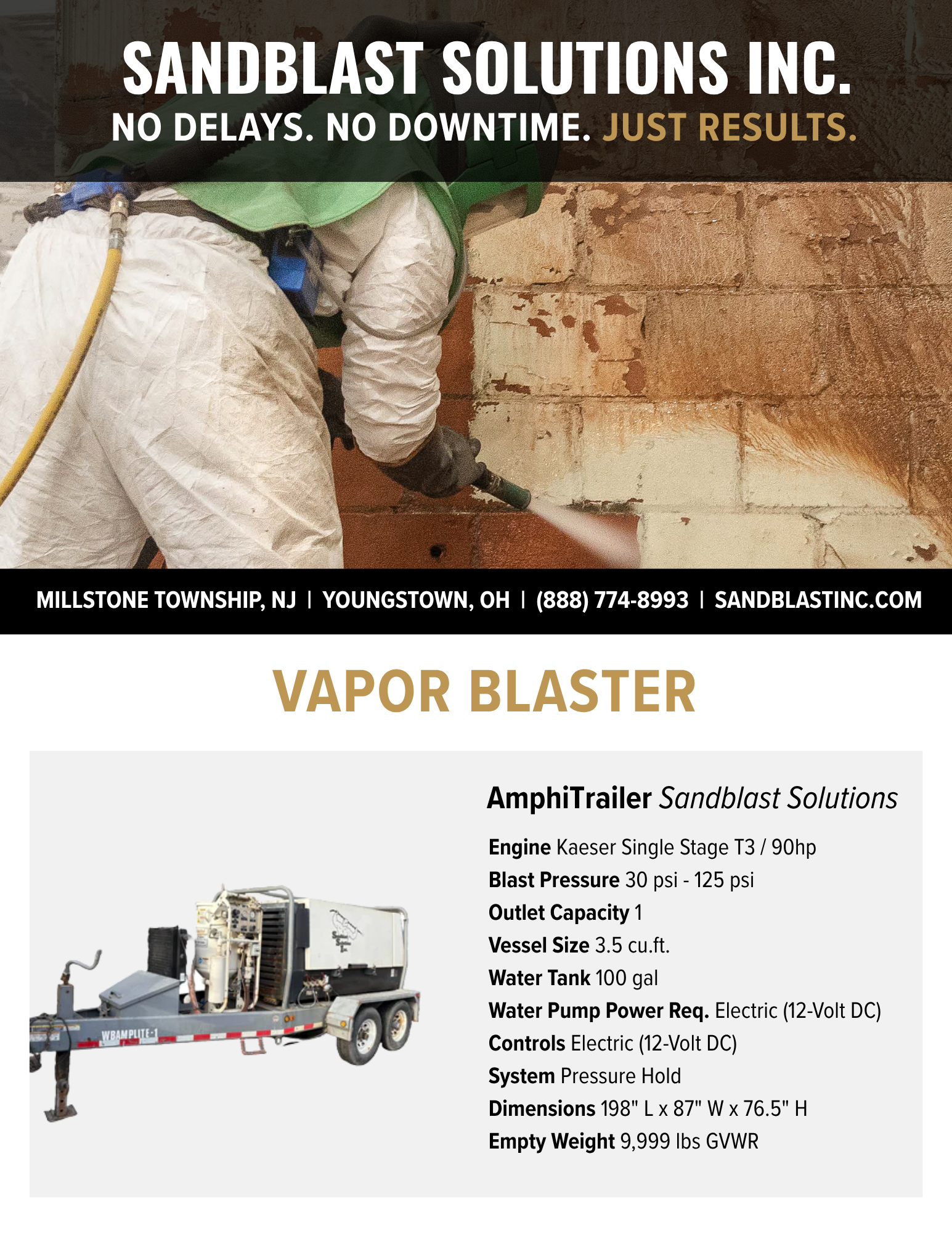

Self-contained blasting trailer with 375 CFM @ 100 PSI air compressor, featuring Schmidt's AmphiBlast Lite.

System Options: Pressure Hold

Control Options: Electric

Vessel Size: 3.5 cu.ft

Water Tank: 100 Gallon

Rentals Include:

• 1-1/4" x 50' 4-Ply Blast Hose Coupled
• 1-1/4" x 50' 2-Ply Whip Coupled
• Electric Deadman and Cord
• Nozzle
