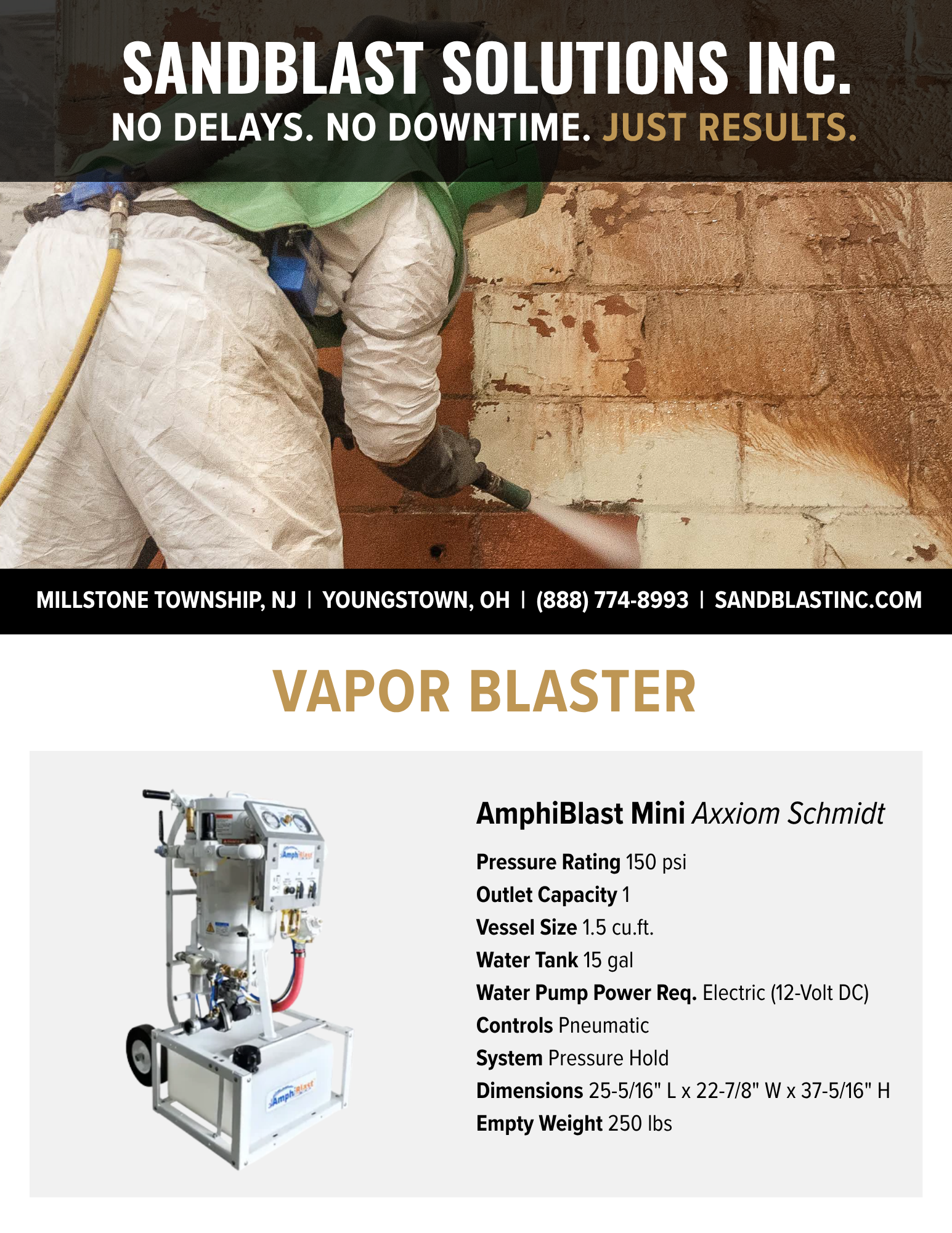

The operation of the AmphiBlast™ Mini is simple. Set the desired blast pressure using the blast pressure control regulator. Choose to blast dry or wet by pushing or pulling a button on the control panel. During wet abrasive blasting, simply dial the water pressure regulator to the desired flow rate represented by the water over air differential pressure gauge reading.

System Options: Pressure Hold

Control Options: Pneumatic with Electric Water Pump

Vessel Size: 1.5 cu.ft

Water Tank: 15 Gallon

Rentals Include:

• 3/4" x 50' 4-Ply Blast Hose Coupled

• Pneumatic Deadman and Twinline
• Nozzle


The operation of the AmphiBlast™ Mini is simple. Set the desired blast pressure using the blast pressure control regulator. Choose to blast dry or wet by pushing or pulling a button on the control panel. During wet abrasive blasting, simply dial the water pressure regulator to the desired flow rate represented by the water over air differential pressure gauge reading.

The AmphiBlast Mini comes in two options, standard with an onboard water tank and without.

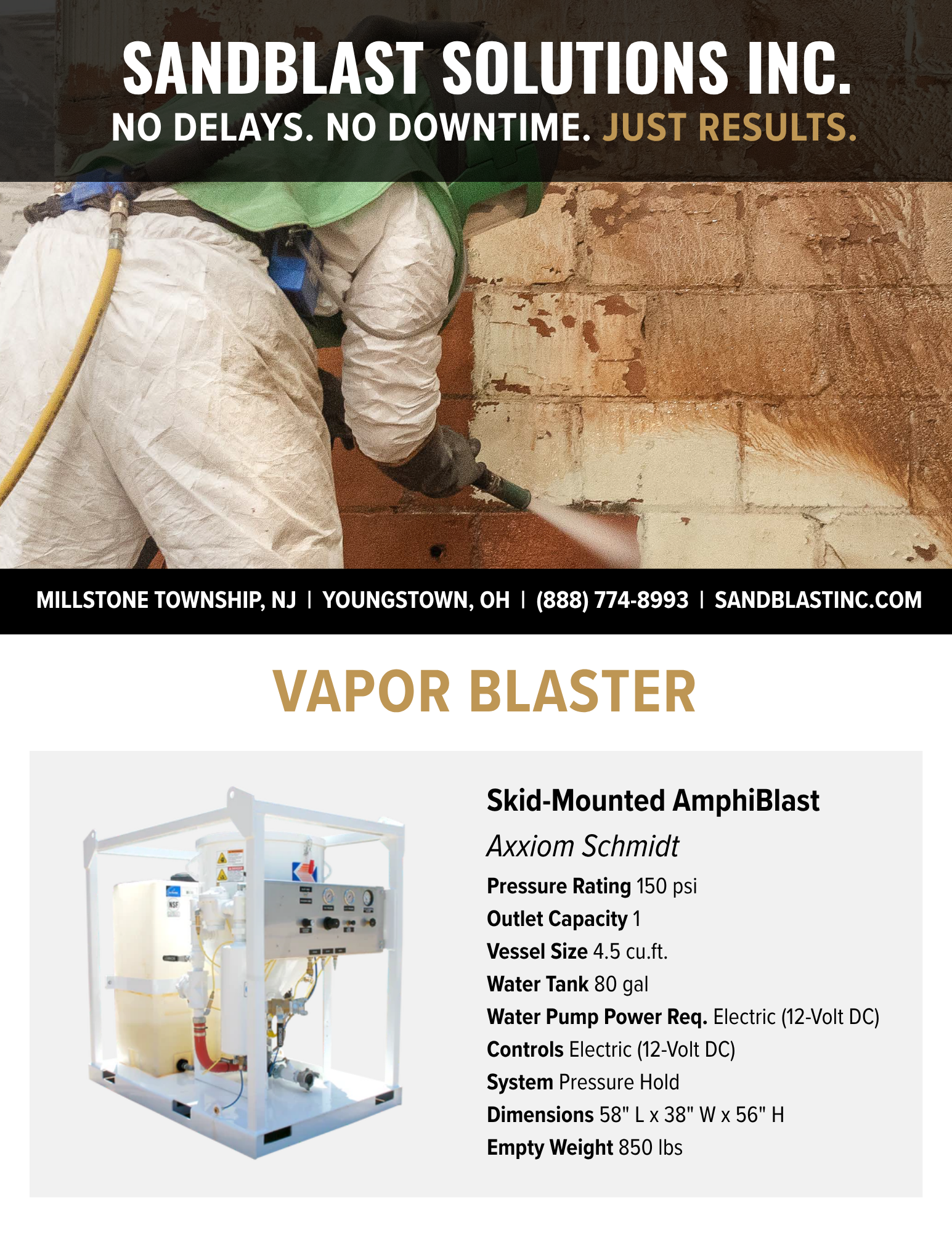

Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user-friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine-tune air, abrasive, and water flows to achieve optimal blasting performance, all while maintaining efficient use of abrasive and water. Switch between wet or dry blast, blowoff, and Softwash™ without having to reset your air, abrasive, or water, using a central, easy-to-use gauge console.

System Options: Pressure Hold

Control Options: Electric

Vessel Size: 4.5 cu.ft

Water Tank: 80 Gallon

Rentals Include:

• 1-1/4" x 50' 4-Ply Blast Hose Coupled
• 1-1/4" x 15' 2-Ply Whip Coupled
• Electric Deadman and Cord
• Nozzle

Unlike other blast systems that mix abrasive and water inside the vessel, the AmphiBlast system injects water into the blast stream after the metering valve, using a patent-pending, user-friendly and uniquely precise water injection system. With this system, you can quickly and consistently control every aspect: fine-tune air, abrasive, and water flows to achieve optimal blasting performance, all while maintaining efficient use of abrasive and water. Switch between wet or dry blast, blowoff, and Softwash™ without having to reset your air, abrasive, or water, using a central, easy-to-use gauge console.

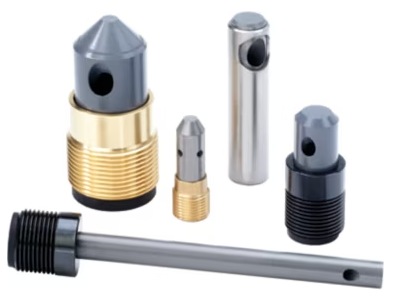

Angle nozzles are designed for precision and versatility in sandblasting applications, offering a unique solution for hard-to-reach areas and complex surfaces. With an angled tip that allows for optimal directional control, these nozzles enable operators to effectively target specific spots while minimizing over-spray and maximizing abrasive efficiency.

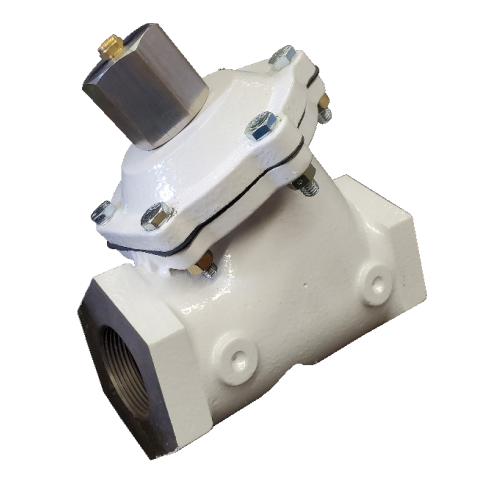

The Schmidt® Auto Air Valve is typically used on “pressure hold” systems in conjunction with the Thompson®/TeraValve™ family of abrasives metering valves.

Standard Options: 3/4", 1-1/4", 1-1/2"

High Flow Options: 1-1/2", 2"

*Repair Kits Available*

BAABS (Blasting Accessories and Assist Bracket System) with electric G3 Deadman, Thrust Management Brace Assembly, and BAABS side grip.

Options: Long Rail, Short Rail, Compact, Subcompact

BAABS (Blasting Accessories and Assist Bracket System) with pneumatic G3 Deadman, Thrust Management Brace Assembly, and BAABS side grip.

Options: Long Rail, Short Rail, Compact, Subcompact

The Ball & Chain is designed as an integral part of the safety features of these products. If the operator drops the blast hose the ball will dislodge and automatically disengage the switch and the system will shut down.

The female ball valve assemblies shown below work with paint, petroleum-based hydraulic fluids, fuel oil, and air.

Inlet / Outlet: 1/4", 3/8", 1/2", 3/4", 1"

Working Pressure:  3,600 psi, 4,500 psi, 5,800 psi, 7,250 psi

The male ball valve assemblies shown below work with paint, petroleum-based hydraulic fluids, fuel oil, and air.

Inlet / Outlet: 1/4", 3/8"

Working Pressure: 7,250 psi

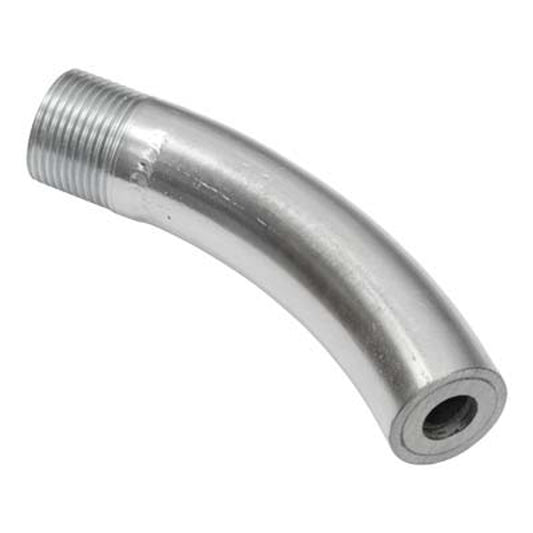

Curved blast nozzle made from Boron Carbide. Excellent for aerospace, aviation and automative component-related applications where minimal access or clearance are an issue.

Crushed glass abrasives offer concrete workers an eco-friendly, silica-free solution for surface preparation. It provides precise blasting with minimal dust, improving job site safety and cleanliness. Ideal for removing coatings, rust, and contaminants, crushed glass helps achieve smooth, durable concrete surfaces without excessive wear.

Mesh Size: #10/20, #20/30, #30/60, #40/70, #60/140

Packaging: 63 x 50lb Bags, 3,086lb Bulk Bag, Bulk Per Ton

*Sold by the pallet*

Recommended for cleaning rust, paint or scale on steel, stainless steel, concrete, wood and aluminum surfaces. Eco-friendly: Recycled Glass.

Mesh Size: #10/20 - Very Coarse

Surface Profile: 3.5 - 5.0 mils

Packaging: 63 x 50lb Bags, 3,086lb Bulk Bag, Bulk Per Ton

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.

Recommended for cleaning rust, paint or scale on steel, stainless steel, concrete, wood and aluminum surfaces. Eco-friendly: Recycled Glass.

Mesh Size: #20/30 - Coarse

Surface Profile: 2.0 - 4.0 mils

Packaging: 63 x 50lb Bags, 3,086lb Bulk Bag, Bulk Per Ton

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.

Recommended for cleaning rust, paint or scale on steel, stainless steel, concrete, wood and aluminum surfaces. Eco-friendly: Recycled Glass.

Mesh Size: #30/60 - Medium

Surface Profile: 1.5 - 3.0 mils

Packaging: 63 x 50lb Bags, 3,086lb Bulk Bag, Bulk Per Ton

Sold by the pallet

Abrasive blasting dust can cause serious injury or death. OSHA requires a Type CE NIOSH-certified airline respirator with a positive pressure blasting helmet for protection.
